• LAN, Wi-Fi, and Bluetooth connection

• 2 outputs, 16A each. Total device maximum of 25A

• Power metering on each channel and free storage data

• Cover (roller) control - roller shutters, awnings, gates, barriers, sliding doors, curtains, garage doors, bi-directional AC motors

• 1-phase control

• Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

Specifications

PHYSICAL

• Size (HxWxD): 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in

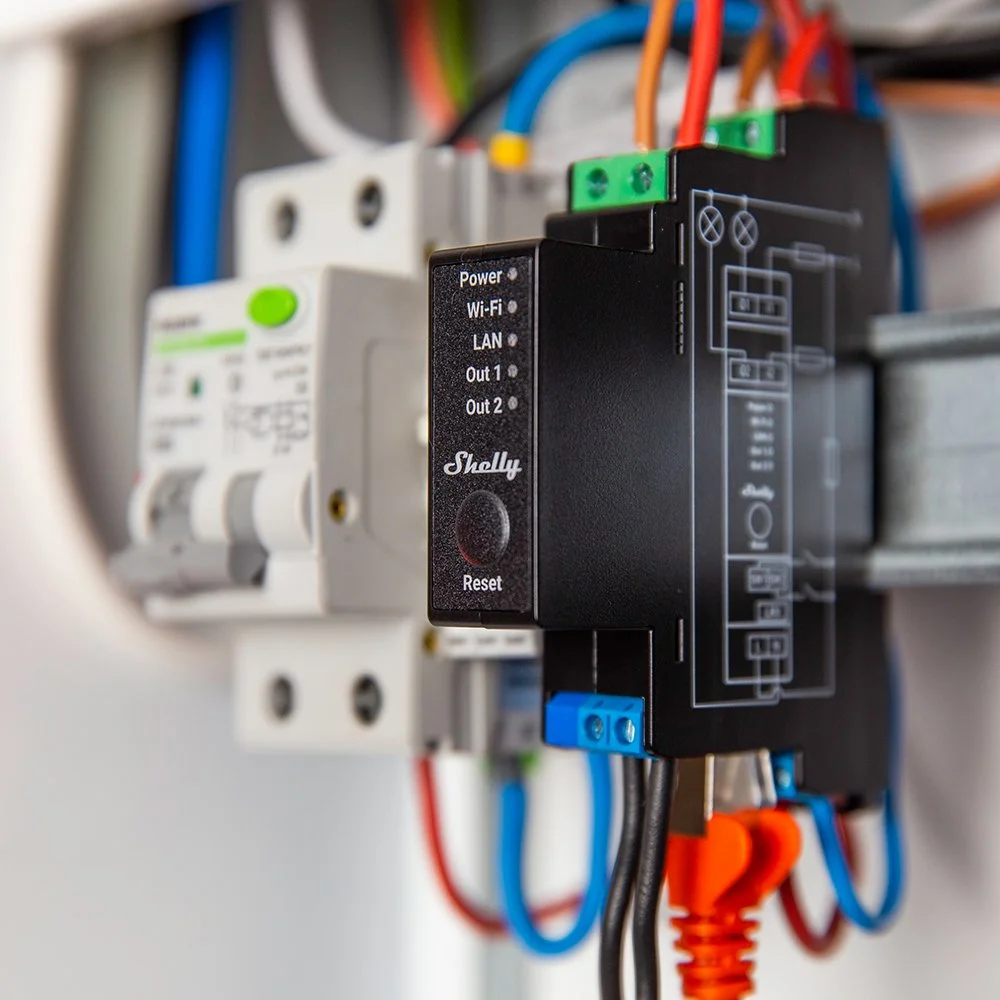

• Mounting: DIN rail

• Screw terminals max torque: 0.4 Nm / 3.54 lbin

• Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)

• Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)

• Shell material: Plastic

• Color: Black

ENVIRONMENTAL

• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F

• Humidity 30 % to 70 % RH

• Max. altitude 2000 m / 6562 ft

ELECTRICAL

• Power supply voltage AC: 110 - 240 V

• Power supply voltage DC: N/A

• Power consumption: < 3 W

• Neutral not needed: No

OUTPUT CIRCUITS RATINGS

• Max switching voltage AC: 240 V

• Max switching voltage DC: N/A

• Max switching current AC: 16 A per channel, 25 A total

• Max switching current DC: N/A

SENSOR, METERS

• Voltmeter (AC) Yes

• Ammeter (AC) Yes

• Temperature sensor: Yes

RADIO

• RF band: 2400 - 2495 MHz

• Max. RF power: <20 dBm

• Wi-Fi protocol: 802.11 b/g/n

• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

• Bluetooth Protocol: 4.2

• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

MCU

• CPU: ESP32-D0WDQ6

• Flash: 8 MB

FIRMWARE CAPABILITIES

• Schedules: 20

• Webhooks (URL actions): 20 with 5 URLs per hook

• Scripting: mJS

• MQTT: Yes

• CoAP: No
